## Quickstart (Flutter)

> You can find the entire project below in the [examples/flutter/quickstart](examples/flutter/quickstart) folder of the repository.

1. Switch to Flutter master channel, create a new project, then add `thermion_flutter` as a dependency

```bash
$ flutter channel master
$ flutter create thermion_sample_project && cd thermion_sample_project
$ flutter pub add thermion_flutter
```

2. If running on MacOS, change the minimum deployment target to OSX 13

<Accordion title="Click to expand MacOS instructions">

In `macos/Podfile`, make sure the `platform` entry refers to `13.0`.
```
platform :osx, '13.0'
```

Then open XCode:
```
open macos/Runner.xcworkspace
```

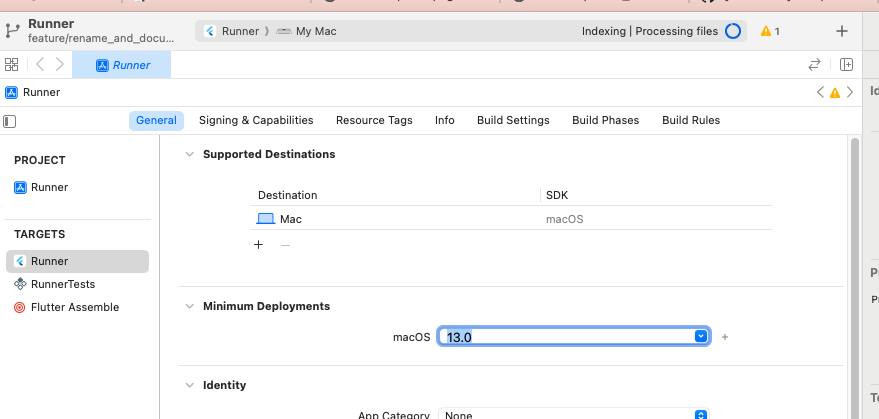

and change the minimum deployment target to 13.0:

![XCode screenshot](images/macos_min_deployment.png)

</Accordion>

2. Add a folder containing your assets (glTF model + skybox ktx) to your `pubspec.yaml` asset list

```yaml
...
flutter
  uses-material-design: true
  assets:
    - assets/
```

3. Create an instance of `ThermionFlutterPlugin` in your app.

```dart

class _MyAppState extends State<MyApp> {
  late ThermionFlutterPlugin _thermionFlutterPlugin;
  late Future<ThermionViewer> _thermionViewer;
  void initState() {
    _thermionFlutterPlugin = ThermionFlutterPlugin();
    _thermionViewer = _thermionFlutterPlugin.createViewer();
  }
}

```


4. Add a `ThermionWidget` to your widget hierarchy

```dart

class _MyAppState extends State<MyApp> {

    late ThermionFlutterPlugin _thermionFlutterPlugin;
    late Future<ThermionViewer> _thermionViewer;
    void initState() {
        _thermionFlutterPlugin = ThermionFlutterPlugin();
        _thermionViewer = _thermionFlutterPlugin.initialize();
    }

    Widget build(BuildContext context) {
        return Stack(children:[
            Positioned.fill(
                child:ThermionWidget(
                    plugin:_thermionFlutterPlugin
                )
            )
        ]);
    }
}

```

4. Add a button to load the model when pressed

```dart
class _MyAppState extends State<MyApp> {

    late ThermionFlutterPlugin _thermionFlutterPlugin;
    late Future<ThermionViewer> _thermionViewer;
    void initState() {
        _thermionFlutterPlugin = ThermionFlutterPlugin();
        _thermionViewer = _thermionFlutterPlugin.createViewer();
    }

    Widget build(BuildContext context) {
        return Stack(children:[
            Positioned.fill(
                child:ThermionWidget(
                    plugin:_thermionFlutterPlugin
                )
            ),
            Center(child:ElevatedButton(child:Text("Load"), onPressed:() {
                // TODO
            }))
        ]);
}}
```

5. Load a skybox and the glb asset
```dart
  Center(child:ElevatedButton(child:Text("Load"), onPressed:() {
               var viewer = await _thermionViewer;
               await viewer.loadSkybox("assets/default_env_skybox.ktx");
               await viewer.loadGlb("assets/cube.glb");
    }))
```

(Note - "skybox" refers to the background (cube) image rendered behind all other elements in the scene).

Anything added to the scene is referred to as an "entity".

Entities are always added to the scene at position (0,0,0).

The default scene camera is located at (0,0,0) (and is looking at -Z, or "into" the screen), so by adding a cube at (0,0,0), the camera will now be inside the cube.

We need to move the camera outside the cube so it's visible.

6. Change the camera orientation
```dart
   var viewer = await _thermionViewer;
    await viewer.loadSkybox("assets/default_env_skybox.ktx");
    await viewer.loadGlb("assets/cube.glb");

    await viewer.setCameraPosition(0, 1, 10);
    await viewer.setCameraRotation(v.Quaternion.axisAngle(
                        v.Vector3(1, 0, 0), -30 / 180 * pi) *
                    v.Quaternion.axisAngle(v.Vector3(0, 1, 0), 15 / 180 * pi));
```

The cube still won't be visible until we add a light to the scene and tell Thermion to start rendering.

7. Add a light and turn rendering on
```dart
    ...
    await viewer.addLight(
                    LightType.SUN, 7500, 50000, 0, 0, 0, 1, -1, -1);
    await viewer.setRendering(true);
    ...
````

Your first Thermion project is complete!
